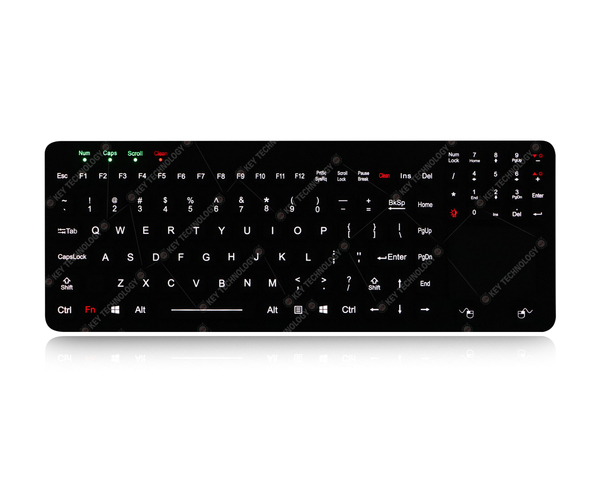

K-TEK-M366TP-KP-FN-BL-SS

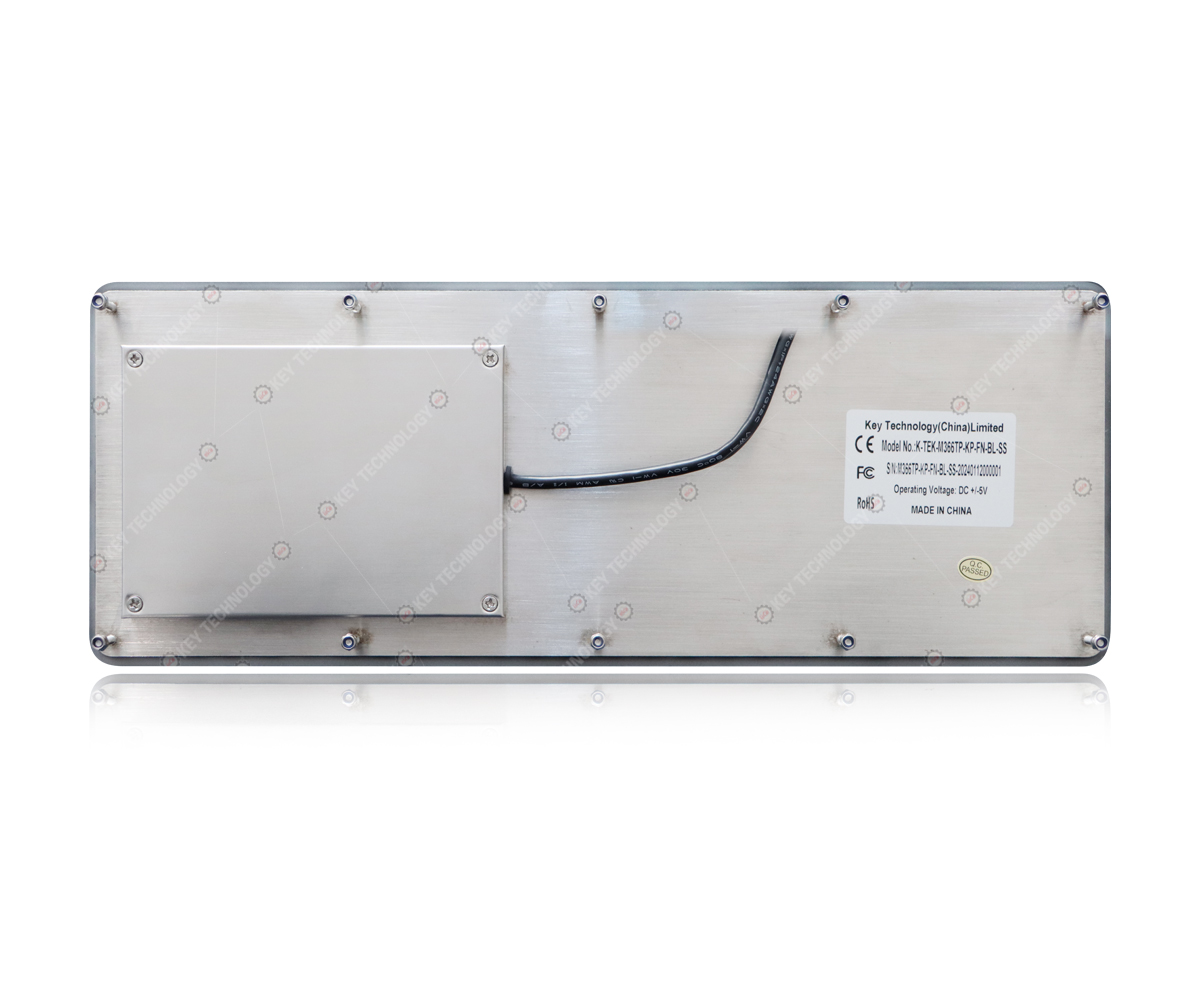

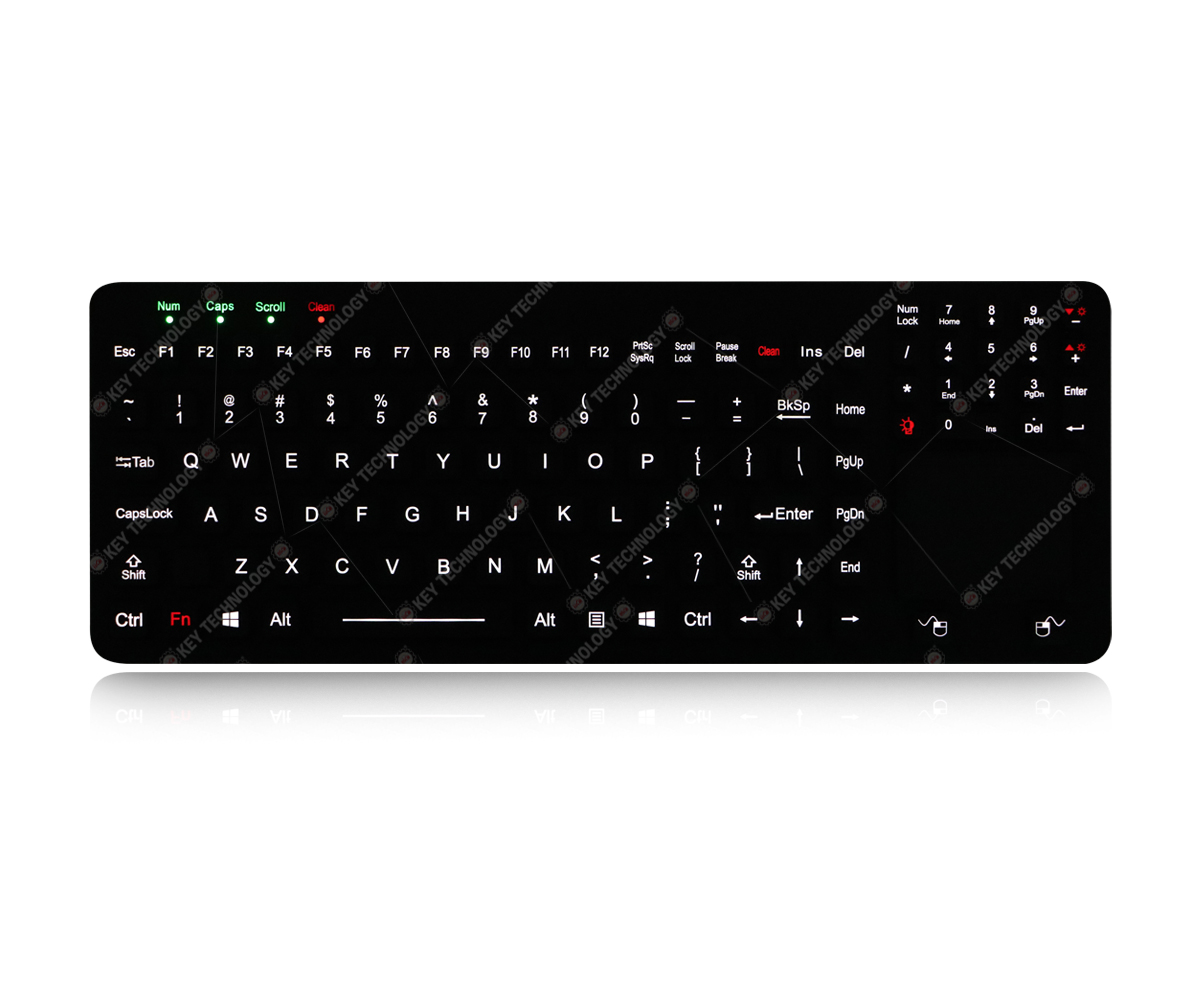

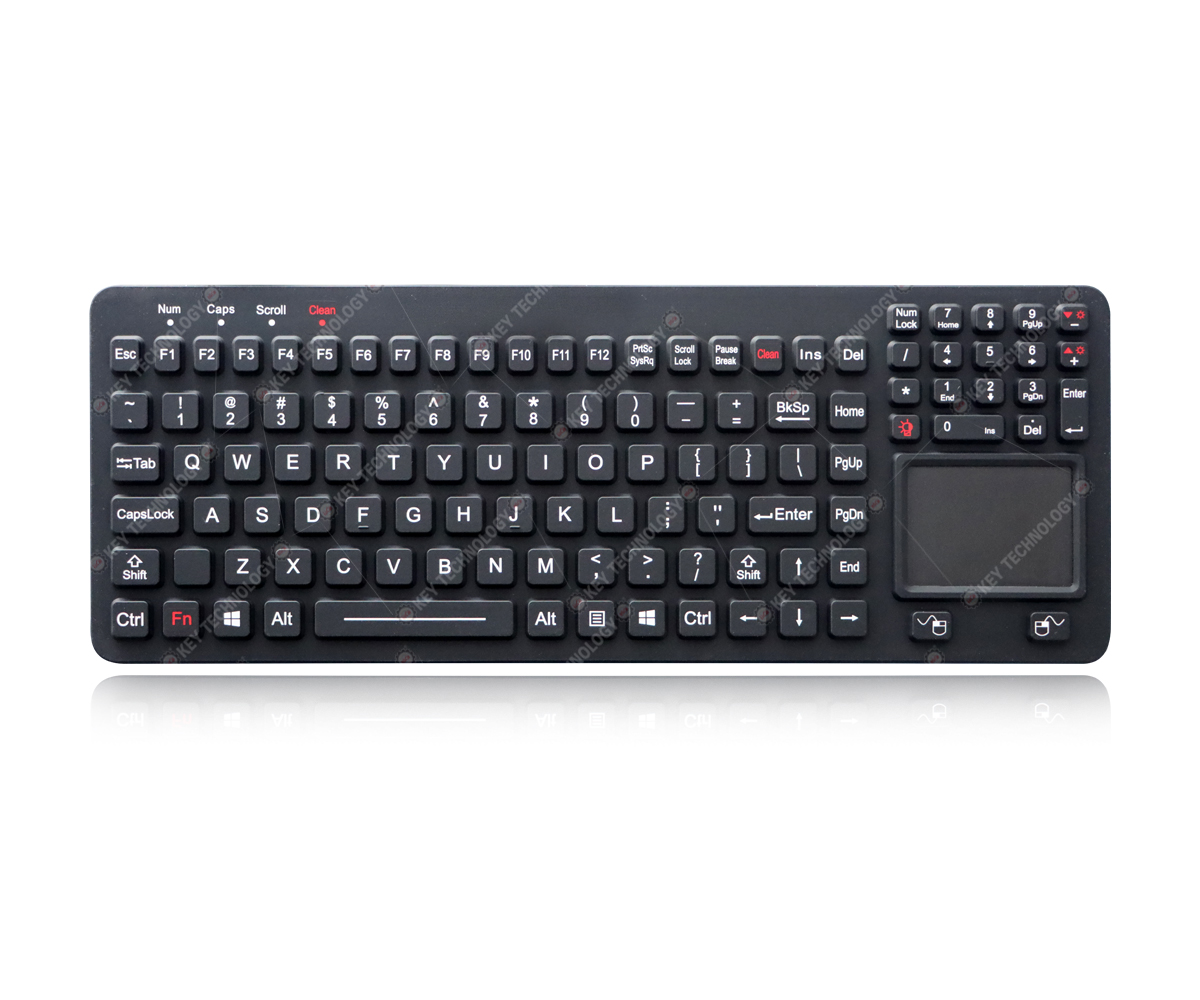

DESCRIPTION: 110 keys IP65 dynamic waterproof sealed & ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, with sealed & ruggedized tough touchpad for fast and accurate cursor position, integrated numeric keypad and 12 FN keys (F1, F2...F11, F12), with carbon-on-gold key switch technology with key stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning without disconnecting the keyboard and computer, top panel mounted solution with rugged stainless steel back plate with mounting studs to protect the electronics. Adjustable industrial white backlight included to fit for dim or dark environment. Designed to meet MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand and dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSION: 366.0mm x 136.0mm (L x W)

K-TEK-M366TP-KP-FN-BL-SS mechanical drawing
